Dimensions & Techinical Specifications of PAH-S1-3200

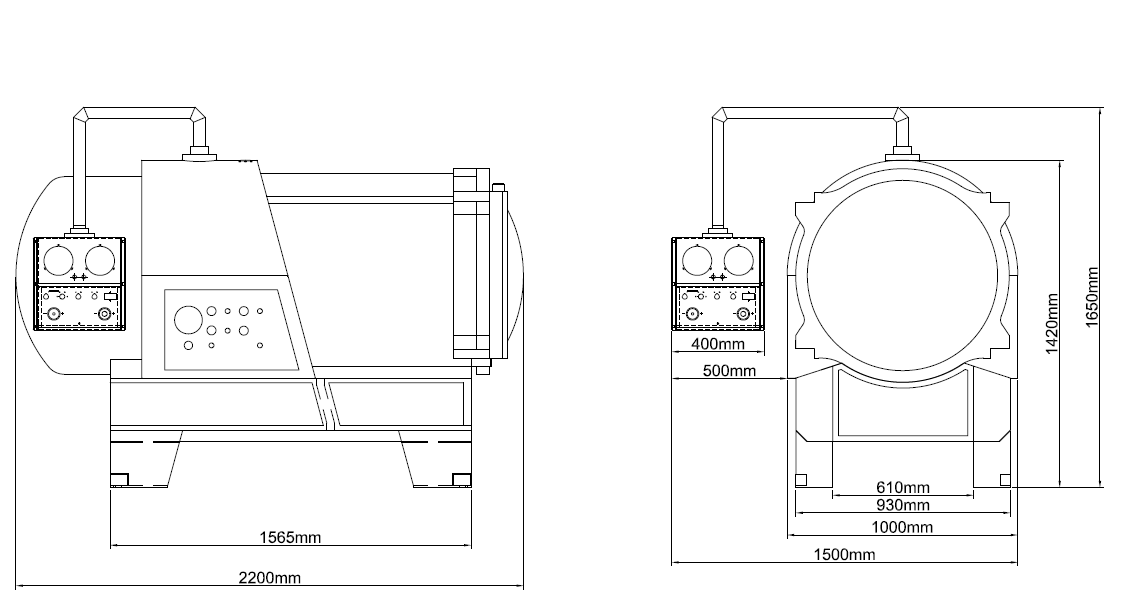

Dimensions
| Length | 86.6″ (2,200 mm) |
| Width | 39.4″ (1,000 mm) |
| Height | 65″ (1,650 mm) |
| Internal Diameter | 32″ (813 mm) |
| Internal Volume | 37.5 cubic feet (1.06 cubic meters) |
| Weight | 2,068 lbs (940 kg) |
Tech Specs
| Max. operating pressure | 39.4 psig / 3 ATA |
| Gas supply pressure | 50~70 PSIG @ 29 SCFM |
| Pressurization gas | Air or Oxygen |
| Pressurization rate | 0.01 to 5.0 PSIG / min |
| Ventilation range | 60 LPM to 480 LPM
(2.1 to 17 SCFM) |
| Recommended vent rate | 90 LPM to 200 LPM
(3.2 to 7.1 SCFM) |
